BTO-10 Barbed Tape concertina Razor Wire short blade

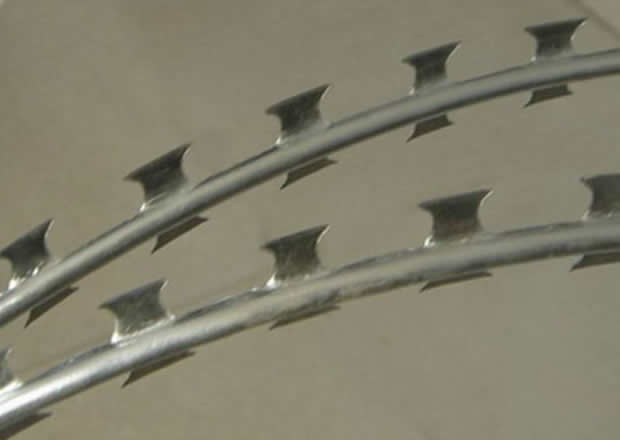

Barbed Tape Obstacle (BTO-10) Razor Wire is designed and manufactured with a short blade profile of 10mm ± 1mm, offering less frightening effect and protection compared with bigger blades such as BTO-22. BTO-10 razor tape is commonly used in crossed concretina form for enhanced fencing effects. Made of hot-dipped galvanized steel sheets or stainless steel sheets, BTO-10 razor wire has the features of economic secure fencing, easy installation, corrosion resistance and other properties.
| Model | Blade Thickness | Core Wire Diameter | Blade Length | Blade Width | Blade Space |
| BTO-10 | 0.5 ± 0.05mm | 2.5 ± 0.1mm | 10 ± 1mm | 13mm | 26mm |
| Blade Type | Notes | Outside Diameter | Standard Length per Coil | No.of Loops |
| BTO-10 | Cross type | 450mm | 8-9m (3 clips) | 56 |
| BTO-10 | Cross type | 500mm | 9-10m (3 clips) | 56 |
| BTO-10 | Cross type | 600mm | 10-11m (3 clips) | 56 |
| BTO-10 | Cross type | 600mm | 8-10m (5 clips) | 56 |
| BTO-10 | Cross type | 700mm | 10-12m (5 clips) | 56 |
| BTO-10 | Cross type | 800mm | 11-13m (5 clips) | 56 |
| BTO-10 | Cross type | 900mm | 12-14m (5 clips) | 56 |
| BTO-10 | Cross type | 960mm | 13-15m(5 clips) | 56 |
| BTO-10 | Cross type | 980mm | 14-16m(5 clips) | 56 |
There are two main installation methods of this razor wire: Single coil spiral and concertina.
The difference between spiral razor wire and concertina razor wire:
With the same installation distance, the spiral coil saves about half of the material than the concertina type. Since the spiral coil is free-stretching installation, razor wire needs to be tied with wire. Generally, the mounting bracket is equipped with 3 horizontal lacing wires.

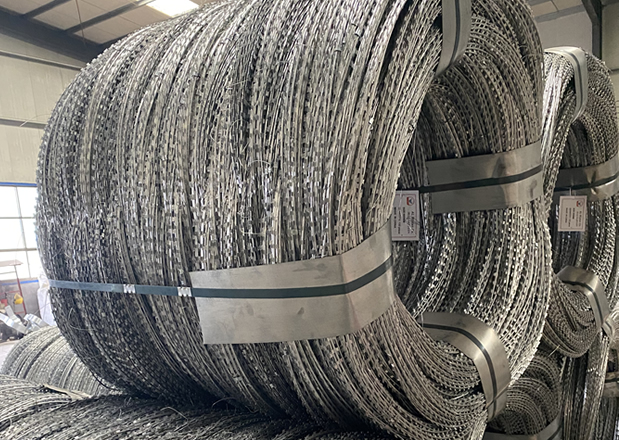

Finished products of BTO 10 razor wire are supplied in 4 major forms: Straight line, flat razor wire, concertina, welded razor mesh.
Concertina Razor Barbed Wire
Material: Iron Wire or Stainless steel wire
Surface Treatment: Galvanized
Type: Barbed Wire Coil
Razor Type: Single Razor
Thickness: 0.5mm
Wire diameter: 2.5mm
Blade type: BTO-10/22/28/30/,CBT60/65
Coil Diameter: 450mm-900mm
Coil weight: 10-30kgs
Loops: 30-60
Packing: Waterproof Paper +Woven Bags
MOQ: 100 Coil
Customized Specifications
Razor wire, security round bound, BTO-10 cross type, 500mm, 102, 16m.
BTO-10 Galvanized Razor Wire Coils Concertina Barbed Wire For Security Protection
BTO-10 Stainless Steel Razor Barbed Concetina Wire Coil for Prison or Military Protect
Razor Wire Concertina Type, Blade Type Short BTC and Medium BTC
450 mm / 3 clips per cycle, 56 spiral per coil, 6 kg per coil, galvanized, 2.5 mm diameter of coil wire, blade type: Short BTC, length 10m.
900 mm / 5 clips per cycle, 56 spiral per coil, 13 kg per coil, galvanized, 2.5 mm diameter of coil wire, blade type: Medium BTC, length 12m.
Galvanized BTO 10 Concertina Blade Razor Barbed Wire Fence
Material: Hot Dipped Galvanized Wire
Core Wire Diameter: 2.7±0.1mm
Razor Barbed sheet thickness: 0.5±0.05mm
Razor Loop Diameter: 300mm, 400mm, 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm. 450mm(3 clips), 500mm(3 clips), 900mm(5 clips) are the usually sizes
Per coil weight: as customers requirements. (common weight is 7KG 10KG, 12kg, 14kg)
BTO 10 Concertina razor wire cross type for ships manufacture plants
Concertina razor wire cross type BTO 10
Electro galvanized
Maximum opening about 14-15mt [strecching-forcing] ( 20 ft cont about 24 tons)
5 clips
96 cm 13 kg 1coil 14-15mt opening
Razor wire, Extended length 15 M, Dia. 90 cm, Zinc Plated, Razor Type Concertina Wire.
TO-10 Galvanized Razor Wire Coils Concertina Barbed Wire For Security Application
Used for isolation protection of grassland boundaries, railways, highways, and enclosure protection, oil and gas operation, power plants, government agencies, prisons, outposts, border defenses, etc.
