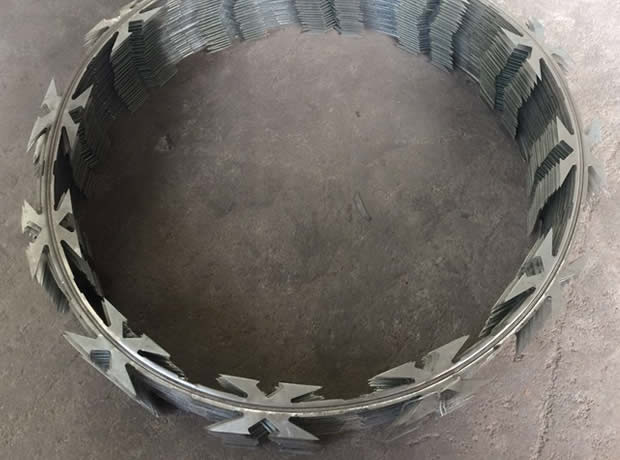

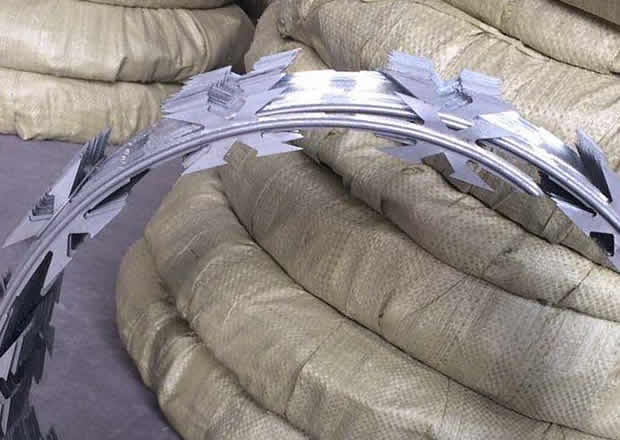

CBT-60 Concertina Barbed Tape Razor Wire
CBT-60 concertina razor wire-Concertina Barbed Tape (CBT) Blade Length 60±1mm.
Structure: CBT-60 Razor Wire Concertina has sharp blades made of steel sheet thickness of 0.6 ± 0.05 mm, securely wound around a core wire with a diameter of 2.5 ± 0.1 mm, of galvanized steel or stainless steel material.
Blades: The blade length is 60 ± 1 mm and a blade width of 32 ± 1 mm, spaced at intervals of 96 ± 1 mm, CBT-60 creates a formidable barrier that effectively deters and prevents unauthorized access.
CBT-60 and CBT-65 razor wire concertina is ideal for securing high-risk areas such as military installations, prisons, and various reliable high security fencing needs.
Loops: 33 and 56 loops as commonly used.
| Model | Blade Thickness | Core Wire Diameter | Blade Length | Blade Width | Blade Space |
| CBT-60 | 0.6 ± 0.05 mm | 2.5 ± 0.1 mm | 60 ± 1 mm | 32 ± 1 mm | 96 ± 1 mm |
| Blade Type | Notes | Outside Diameter | Standard Length per Coil | No.of Loops |
| CBT-60 | Single Coil | 450mm | 7M-8M | 33 |
| CBT-60 | Single Coil | 500mm | 12M-13M | 56 |
| CBT-60 | Single Coil | 700mm | 13M-14M | 56 |
| CBT-60 | Single Coil | 960mm | 14M-15M | 56 |
Material options: galvanized steel, ss
Surface Treatment: Galvanized electro galv., hot dipped zinc galv.
Type: Barbed Wire Coil
Razor Type: Cross Razor
Packing: Waterproof Paper +Woven Bags
Weight: 7kg/roll-10kg/roll
Length: 7m-10m/roll
Diameter: 450-1000 Mm
Razor Thickness: 0.5mm-0.6mm +/-0.05mm
Color: Silver
Electro Galvanized Wire:8-60g/m2
Concertina razor wire blade-60mm hot dipped galvanized
GI, CBT, MBBT
0.60mm thick blade
600-540mm coil dia (before & after stretching)
2.50mm diameter G.I wire (high tensile)
12m roll length
Packaging: Standard seaworthy packing, big coils (coil tied at 4 intervals with wire or cordstrap and then rapped with clear plastic and outside woven bag) 500 kgs coil only. Each coil must include 3 stickers specifying coil net weight, coil gross weight, coil number and wire diameter.
CBT60 Single type 7M-8M per coil 33 loop Blade Thickness 0.6±0.05mm
Galvanized or stainless steel Concertina (razor) wires:
Option 1:
Roll Diameter: 60 cm
Roll Length: 15 m
Thickness/blade: 0.5 mm
Wire diameter: 2.6 mm
Quantity of zinc: 40-50 G/m2
Stretching/resistance: 800-1000 Mpa
Option 2:
Diameter: 100 cm
Length: 15 m
Thickness/blade: 0.5 mm
Wire diameter: 2.6 mm
Quantity of zinc: 40-50 G/m2
Stretching/resistance: 800-1000 Mpa
