Galvanized Concertina Razor Barbed Wire -Single Coil, Crossed, Flat Wrap and Welded razor wire
We supply 4 forms of Galvanized razor barbed wire: Single Coil Razor Wire, Crossed Razor Wire, Flat warp razor wire, Welded Razor Wire. Finishes can be electric galvanizing and hot dipped zinc galvanizing.
Galvanized Single Coil Razor Wire
Single coil Concertina Wire is installed without clips, it runs in natural loops on walls or atop fencing panels. Cost less and can be easily installed.
Galvanized Crossed Razor Wire
Two pieces of razor wire were bounded together by clips to make it more strength. The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.
Welded Galvanized Razor Wire Mesh
Welded razor mesh fence is a new form of razor bared wire for security, with razor wire welded into mesh sheet within frame. It can be used for guard fence, doors and windows and also can be used in military.The specification can be designed as the customers' need.

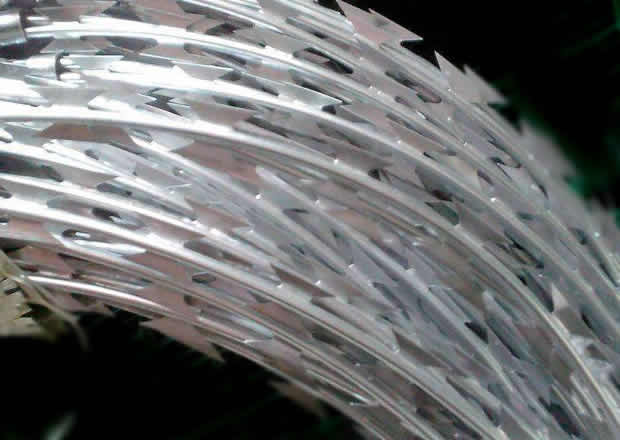

Anti-rust Hot Dipped Galvanized Razor Barbed Wire
Product Description
Material: Hot Dipped Galvanized sheet Hot Dipped Galvanized Wire
Core Wire Diameter: 2.7±0.1mm
Razor Barbed sheet thickness: 0.5±0.05mm
Razor Loop Diameter: 300mm, 400mm, 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm. 450mm(3 clips), 500mm(3 clips), 900mm(5 clips) are the usually sizes
Razor Barbed Wire per coil weight: Be produced as customers requirements.
Meters of per coil Razor Barbed Wire: the greater the stretch strength, the greater the distance between them.
| Material | High quality low carbon steel wire,Iron wire,etc |
| Category | 1,Hot dipped galvanized 2,Electric galvanized 3,PVC coated |
| Characteristic | Firm and beautiful, corrosion-resisting and oxidation-resisting |
| Using | Used as barrier for perimeter,land, lawn,railways,expressways,etc |

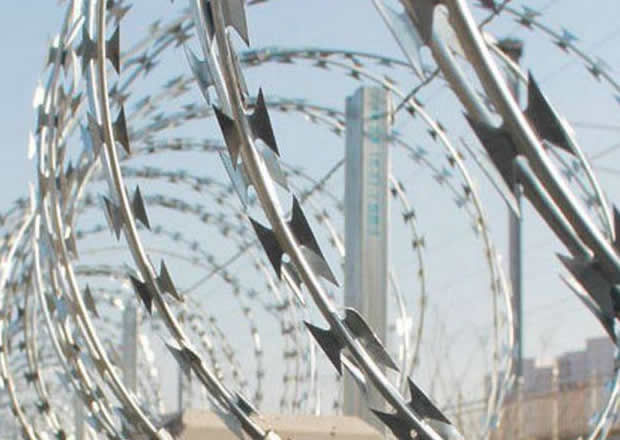

Hot dip galvanised razor blade concertina barbed wire security fencing
Material: high-quality low medium-carbon steel belt, razor-sharp steel blade, high-tensile wire
Fence height: 1.2, 1.8, 2.1, and 2.4 meters
Blade thickness: 0.5+/-0.05mm
Coil diameter: 2.5+/-0.1mm
Blade length: 10mm, 12mm, 15mm, 18mm, 22mm or others
Type: Barbed type concertina (CBT); Barbed type obstacle (BTO)
Sort of galv. razor wire: Single loop, concertina, mesh grill, flat sheet.
Features: Excellent protective performance, construction rapidly and the effect of deter is good, extremely difficult to cut (high tensile core wire), anti climbing.
Specification
| Item | Value |
| Model Number | BTO 22 |
| Material | HIGH TENSILE |
| Surface Treatment | GALVANISED |
| Type | Barbed Wire Coil |
| Razor Type | BT0 22 |
Galvanized steel sheet concertina razor barbed wire
Gauge of |
Approximate Length per Kilo in Meter |
|||
Barbs Spacing 3" |
Barbs Spacing 4" |
Barbs Spacing 5" |
Barbs Spacing 6" |
|
12x12 |
6.0617 |
6.7590 |
7.2700 |
7.6376 |
12x14 |
7.3335 |
7.9051 |
8.3015 |
8.5741 |
12-1/2x12-1/2 |
6.9223 |
7.7190 |
8.3022 |
8.7221 |
12-1/2x14 |
8.1096 |
8.814 |
9.2242 |
9.5620 |
13x13 |
7.9808 |
8.899 |
9.5721 |
10.0553 |
13x14 |
8.8448 |
9.6899 |
10.2923 |
10.7146 |
13-1/2x14 |
9.6079 |
10.6134 |
11.4705 |
11.8553 |
14x14 |
10.4569 |
11.6590 |
12.5423 |
13.1752 |
14-1/2x14-1/2 |
11.9875 |
13.3671 |
14.3781 |
15.1034 |
15x15 |
13.8927 |
15.4942 |
16.6666 |
17.5070 |
15-1/2x15-1/2 |
15.3491 |
17.1144 |
18.4060 |
19.3386 |
Customized Specifications
Galvanized razor barbed wire for perimeter fence atop walls
Type: Razor wire
Material: Galvanized steel
Coil diameter: 600mm
A coil stretch is 8m, in 100 coils
Blade thickness: 0.5mm
Blade length: 19mm
Wire thickness: 2.6mm
Packing: Bulk, simple packing and carton packing.
Simple packing: inside water proof paper and outside woven bags.
Carton packing: Razor mesh coils are compacted then loaded into hard cartoon boxes.
Comparing galvanized razor wire with stainless steel razor wire:
- Corrosion Resistance: Galvanized razor wire provides good corrosion resistance for most environments, while stainless steel razor wire offers superior protection against corrosion, especially in harsh conditions.
- Durability: Galvanized razor wire is durable, whereas stainless steel razor wire maintains its structural integrity even in corrosive environments, ensuring long-lasting security solutions.
- Costs: Galvanized razor wire is more cost-effective initially but may require more frequent replacement, while stainless steel razor wire offers superior long-term value and durability, making it a more sustainable investment for security needs.
- Three Tips to choose between galvanized steel razor wire and stainless steel razor barbed wire:
Consider Environmental Conditions: If the fencing project site is exposed to high humidity, saltwater, or chemical exposure, stainless steel razor wire is preferable due to its superior corrosion resistance. For less harsh environments, galvanized razor wire may suffice.
Assess Security Requirements: If security is paramount and the site requires a long-term, low-maintenance solution, stainless steel razor wire is the better choice.
Consider project budget: If budget constraints are significant, galvanized razor wire may be a more cost-effective option.
