Military Concertina Razor Wire coils for military facilities, national borders fencing
Military Razor wire is widely used in prisons, battlefields, war facilities, national defence and other security facilities.
Concertina Wire is relatively inexpensive but effective security fencing material. Concertina Razor Wire around the military perimeter can deter and stop invaders, wouldbe vandal, robber or saboteur.
Four Benefits of Concertina Wire for Military Uses:
1, Razor Concertina Wire is made of a corrosion resistant galvanized steel cutting ribbon wrapped around a core of galvanized spring steel wire.
2.
It's impossible to cut without highly specialized tools, and even with tools, it's a slow, dangerous job.
3.
Concertina Razor Wire is a long lasting and very effective barrier, known and trusted by security professionals.
4.
Concertina wire can be used with trailers / trucks for quick deployment mobile barrier forming.

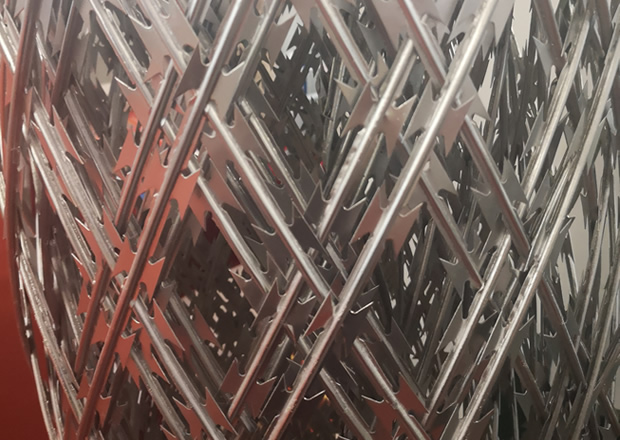

Welded razor wire mesh and concertina razor wire coil can also be combined with each other, and such an effective combination can prevent the theft and illegal access. In military, frontier or forbidden places, military grade concertina wire is widely used by military soldiers.
Spiral razor wire is simple to install and has good fence barrier effect, used in most military sites and battle fields. The diameter can be selected according to customer needs. Generally, the diameters of 800 mm and 900 mm are used for military uses, and the diameter of 500 mm per coil is used for civil and other facilities security.
Customized Specification
Razor wire has various types according to the blade specification, such as BTO-12, BTO-18, CBT-65. The barbed length is longer, the razor wire is much sharper and brings more safety.
Material: galvanized steel wire or stainless steel wire
Type: razor wire Coil
Razor thickness: 0.5mm-0.6mm +/-0.05mm
Razor Type: cross razor
Diameter: 450mm-960mm
Barbed distance: 7.5-15cm
High Security Concertina Wire for military or defence area
Barb Size applied for Razor Barbed Tape:
Thickness: 0.6mm
Wire diameter: 2.5mm
Barb length: 60mm
Barb width: 22mm
Barb spacing: 102mm
Hot Dipped Galvanized Concertina Razor Barbed Wire for Protection BWG 12 / BWG 18
Material: Iron Wire
Surface Treatment: galvanized
Type: Barbed Wire Coil
Wire gague: bwg12*14, bwg14*14, bwg16*16
Strand: Single, Double, General
Wire diameter: 1.6mm-2.8mm(BWG12-BWG16)
Packing: 50kg/coil
Length: 50m 100m
Surface: Hot Galvanized+PVC+Electro Galvanized
Hot Dipped Galvanized Razor Barbed Tape with Chain Link Fence for National Border Defence
Chain link fence with security edge topped with concertina coils military security grade
| Barbed Tape Concertina Specification Of Razor Wire | ||||
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13M | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14M | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15M | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross ty |
50cm diameter cross concertina razor wire BTO-22 5kgs/coil
Concertina wire security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.

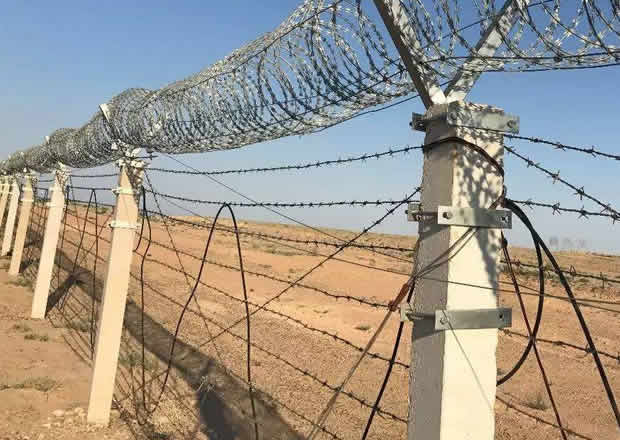

Concertina wire and barbed wire are used for border barrier.

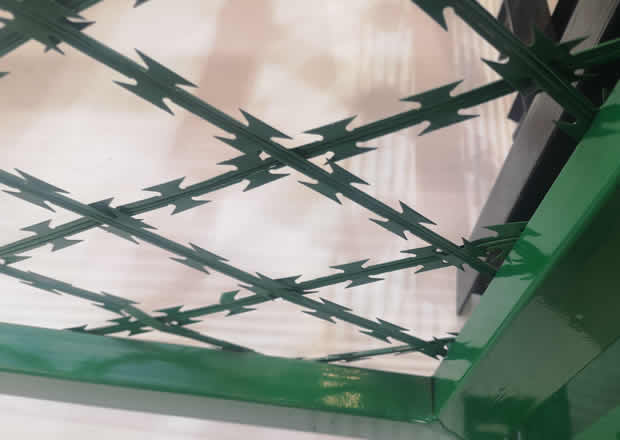

Sharp blade razor wire welded panels are also used in military facilities protection.
