Barbed Tape Obstacle(BTO-18) Razor Wire atop steel pickets and fence panels
BTO-18 Razor Wire is a security fencing barbed tape obstacle characterized by design of 18mm blade profile, designed to provide an effective deterrent and barrier in military, border, and high-security environments. BTO stands for Barbed Tape Obstacle.
Form of Using: BTO 18 Razor Wire can be installed in large coils, extended like a concertina over steel pickets. Razor barbed wire can be used with plain twisted barbed wire as fencing tops above pickets and mesh panels.
Blade: Steel sheet or stainless steel sheet by one-time punching moulding
Wire: Hot dipped galvanized wire, stainless steel wire
Blade Type: BTO-18
Thickness:0.5-0.6mm
Coil Diameter: 450mm, 500mm, 600mm.
(Barbed Tape Obstacle) BTO-18 Razor Wire is a type of safety fence: This type of razor barbed wire has excellent features such as beautiful appearance, economical cost, good anti-blocking effect and convenient construction. Barbed Tape Obstacle BTO-18 razor wire is widely used in industrial and mining enterprises, garden apartments, border fencing, military fields, prisons, detention centers, government buildings and other security facilities.
| Model | Blade Thickness | Core Wire Diameter | Blade Length | Blade Width | Blade Space |
| BTO-18 | 0.5 ± 0.05mm | 2.5 ± 0.1mm | 18 ± 1mm | 15mm | 33mm |
| Blade Type | Notes | Outside Diameter | Standard Length per Coil | No.of Loops |
| BTO-18 | Cross type | 450mm | 8-9m (3 clips) | 56 |
| BTO-18 | Cross type | 500mm | 9-10m (3 clips) | 56 |
| BTO-18 | Cross type | 600mm | 10-11m (3 clips) | 56 |
| BTO-18 | Cross type | 600mm | 8-10m (5 clips) | 56 |
| BTO-18 | Cross type | 700mm | 10-12m (5 clips) | 56 |
| BTO-18 | Cross type | 800mm | 11-13m (5 clips) | 56 |
| BTO-18 | Cross type | 900mm | 12-14m (5 clips) | 56 |
| BTO-18 | Cross type | 960mm | 13-15m (5 clips) | 56 |
| BTO-18 | Cross type | 980mm | 14-16m (5 clips) | 56 |
Galvanized Concertina BTO-18 Spiral Razor Barbed Wire

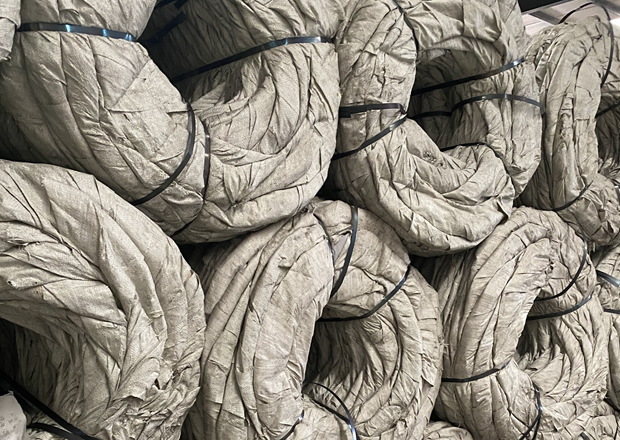

Packing: The sharp razor blade barbed wire is packed into coils by steel strands, then wrapped with moisture proof bags.

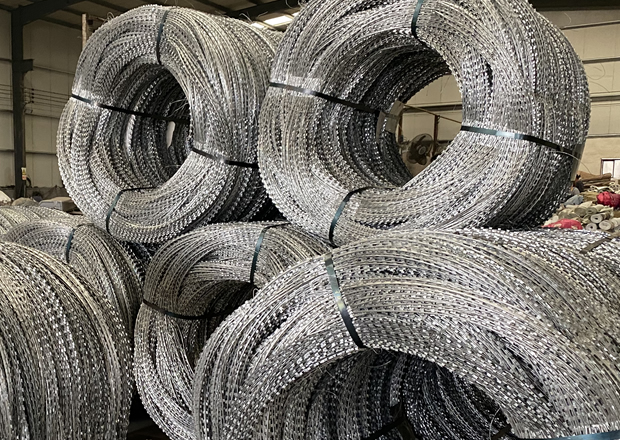

Hot-Dip Galvanized BTO 18 Concertina Razor Barb Wire in Roll
Material: Stainless Steel Wire, Galv.wire
Surface Treatment: Electro galvanized, hot-dip galvanized, plastic coated, sprayed painted
Type: Razor Barbed Wire Coil
Coil Type: Single razor wire, concertina razor wire
Application: Protective border fencing
Feature: Medium Safety Level Protection
Specification: BTO-18 Blade length 18mm
Species: Barbed wire, Blade barbed wire, fencing net
Color: Customized
Packing: Woven Bag
Characteristics: Anti-corrision
Installing Types: Straight line, concertina

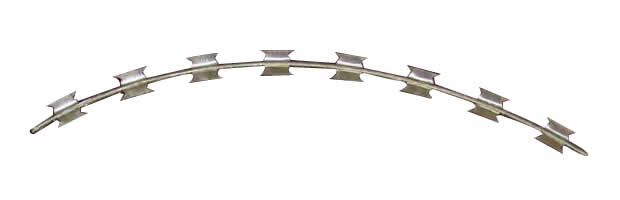

Straight razor wire BTO-18 - straight single line razor barb wire
Using of straight razor wire is simple, easy to install, less frightening.
Installing of Concertina form razor barb wire: BTO 18 razor wire is buckled into concertina coils by double-line buckle, beautiful and deterrent, convenient in construction,economical at cost, widely used for protection of grassland borders, railways, highways, battlefields, prisons and sensitive areas.
Blade style BTO-18 galvanized concertina wire
36 inch diameter galvanized concertina wire:
Diameter of the wire equal to or nearly equal to 609 mm.
Wire hot dip galvanized and zinc coated.
Blade style BTO-18, with wire thickness of .5 mm, wire diameter of 2.5 mm, barb length of 15 mm and barb spacing of 33 mm or equivalent.
12 inch diameter galvanized concertina wire:
Diameter of the wire about 609mm
Wire must be hot dip galvanized and zinc coated.
Blade style BTO-18, with wire thickness of .5 mm, wire diameter of 2.5 mm, barb length of 15 mm and barb spacing of 33 mm or equivalent
Razor barbed wire can be topped along steel picket fencing system for enhanced security fencing uses: BTO 18 barbed tape concertina or other blade types depending on security level can be chosen attached to the barbed wire when needed.
5’metal pickets- The fence picket is constructed from steel conforming to ASTM A1011, producing a yield strength of 50,000 psi, and complies with federal specifications and GSA guidelines for Fence Post, Drive Type, Spadeless. Preferred color is tan, light brown, or coyote. The posts, depending on length, have alternating slots on each side every 9” to accommodate strands of barbed wire. The post width is approximately 3” and can be ordered in a variety of lengths ranging form 60” to 96”. After the post is driven into the ground, barbed wire is inserted into the built-in slots along the length of the perimeter.
Thick, durable and cut resistant gloves of various sizes are supplied for handling of razor wires.
