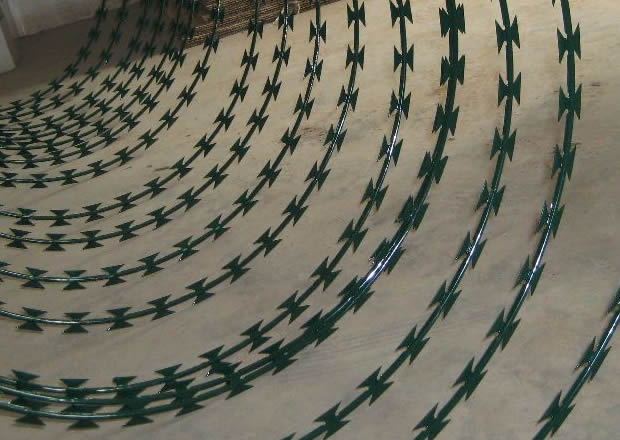

GREEN COATED CONCERTINA SPIRAL RAZOR BARBED WIRE HOT DIPPED GALVANIZED- BLADE 22MM, BLADE 65MM, OTHER SIZES
PVC Concertina Razor Wire or Powder Coated Concertina Razor Wire with plastic paint has good anti-rust function, can be used as security fencing with decorative colors. It is more convenient to install and more cost-effective than common metal mesh fences.
PVC Powder Coated Concertina Wire Green PVC Coated
PVC Surface: Plastic paint can be fixed on surface of the razor wire or iron wire plate, after hot-dipped heat treatment, through coating processing. With plastic paint or powder coating on the steel plate, the concertina razor wire surface has a decorative looks, at the same time becomes more durable, with anti-rust anti-corrosion effect greatly improved than other materials.
Razor wire material: Stainless steel or hot-galvanized steel material ensures long life and low maintenance of the concertina wire.
Features and Application:
PVC Coated Concertina Barbed Tapes are able to be fitted to walls, fences or eaves without the need for heavy duty straining post, supports or cautionary wires, offering high quality barricade whilst retaining high security, allowing repairs to be carried out without compromising perimeter security.
Plastic Green Coated Concertina Wire Blade Specifications
| Specification | Thickness (mm) | Wire Dia. (mm) | Barb Length (mm) | Barb Width (mm) | Barb spacing (mm) |
| BTO - 10 | 0.5 ± 0.05 | 2.5mm ± 0.1 | 10±1 | 13±1 | 26±1 |
| BTO - 12 | 0.5 ± 0.05 | 2.5mm ± 0.1 | 12±1 | 15±1 | 26±1 |
| BTO - 18 | 0.5 ± 0.05 | 2.5mm ± 0.1 | 18±1 | 15±1 | 33±1 |
| BTO - 22 | 0.5 ± 0.05 | 2.5mm ± 0.1 | 22±1 | 15±1 | 34±1 |
| BTO - 28 | 0.5 ± 0.05 | 2.5mm ± 0.1 | 28±1 | 15±1 | 45±1 |
| BTO - 30 | 0.5 ± 0.05 | 2.5mm ± 0.1 | 30±1 | 18±1 | 45±1 |
| CBT - 60 | 0.5 ± 0.05 | 2.5mm ± 0.1 | 60±2 | 32±1 | 100±2 |
| CBT - 65 | 0.5 ± 0.05 | 2.5mm ± 0.1 | 65±2 | 21±1 | 100±2 |
BTO-22 green powder coated concertina razor barbed wire, BTO-12, CBT 65 and other blade type available
Hot Dipped Galvanized PVC Coated BTO22 Razor Wire and Stainless Steel Razor Blade Barbed Wire
Customized Specifications
Concertina razor tape, Hot Dipped Galvanized, PVC Coated
Ø750mm, High Tensile Core wire diameter: 2.5 mm 900N/mm2 or MPa Coating: HDG Min 100g/m2, BTO-22, blade 0.5 mm thick, HDG Min 100g/m2
56 loops, 3 clips, approx. 11.4kg/roll
Ø960mm, High Tensile Core wire diameter: 2.5 mm 900N/mm2 or MPa Coating: HDG Min100g/m2, BTO-22, blade 0.5 mm thick, HDG Min 100g/m2
5 clips, approx. 15kg/roll
High Quality Water Proof Packing Required
CBT-65 Concertina razor wire, hot dipped galvanized cross type 6 meters, PVC coated BWG 10
Wire mesh hot dipped galvanized BWG 10, 10.5, 11 AND 13.5 and pvc coated BWG 10 , both with openings of 50, 60 and 70 mm.
Thick Wire galvanized different diameters in mm, 1.65, 2.11, 3.05, 3.40, 3,76
Thin wire galvanized diameter in mm 1.37
Round Tubes 6cm and 4cm diameter, both 0.90 thickness and 6.6M long.
